High-Quality
Best TMT Rebars

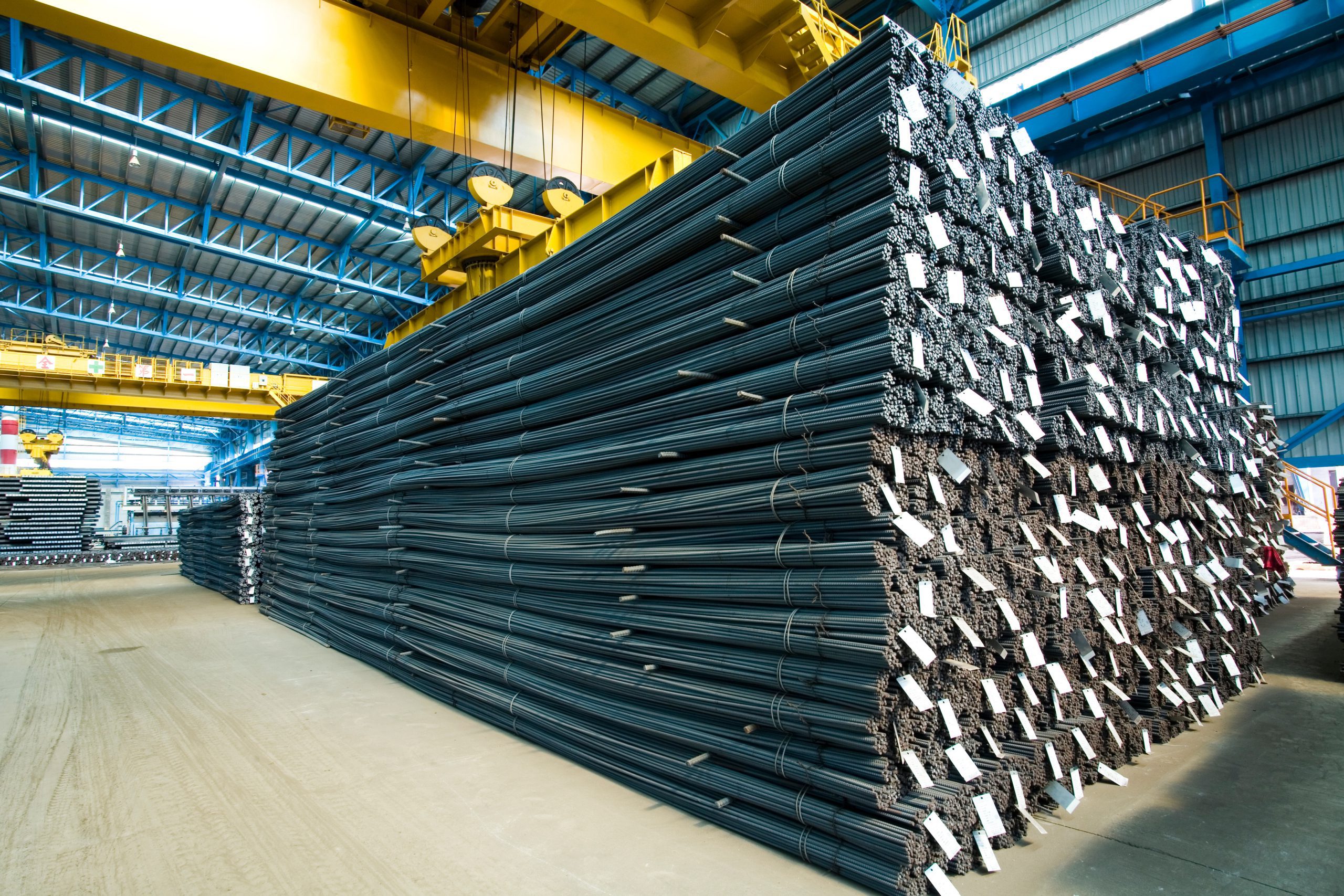

We offer a range of high-quality TMT rebar (Sariya) in various grades, including Fe500, Fe500D, Fe550, and Fe550D. These TMT bars are available in sizes ranging from 8mm to 32mm, making them suitable for a wide range of construction applications. Our TMT saria is manufactured from hot-rolled billets, ensuring durability and strength in structural projects. These products meet stringent quality standards, making them a reliable choice for construction projects of all sizes.
Chemical Data of TMT Bar
| Properties | ISI Standard FE500 | Jumbo TMX FE500 | ISI Standard FE500D | Jumbo TMX FE500D |
|---|---|---|---|---|
| Carbon % | 0.3 | 0.25 | 0.25 | 0.23 |
| Sulphur % | 0.055 | 0.05 | 0.04 | 0.035 |
| Phosphorus % | 0.055 | 0.05 | 0.04 | 0.035 |
| S+P % | 0.105 | 0.1 | 0.075 | 0.07 |
Mechanical Data of TMT Bar
| Properties | ISI Standard FE 500 | Jumbo TMX FE 500 | ISI Standard FE 500D | Jumbo TMX FE 500D |
|---|---|---|---|---|
| Yield Stress (Min.) | 500 | 530 | 500 | 530 |
| Tensile Strength (Min.) | 545 | 600 | 565 | 610 |
| Elongation (Min.) | 12% | 16% | 16% | 18% |
Standard Size and Useful Data of TMT Bar
| Size of Bar (MM) | Weight Tolerance (BIS 1786:2008) | Jumbo TMX Specifications | |||
|---|---|---|---|---|---|
| Lower | Standard | Upper | Lower | Upper | |
| 8 | 0.367 | 0.395 | 0.423 | 0.37 | 0.412 |
| 10 | 0.574 | 0.617 | 0.66 | 0.58 | 0.65 |
| 12 | 0.844 | 0.888 | 0.932 | 0.85 | 0.925 |
| 16 | 1.5 | 1.58 | 1.659 | 1.52 | 1.64 |
| 20 | 2.395 | 2.47 | 2.544 | 2.41 | 2.53 |
| 25 | 3.73 | 3.85 | 3.965 | 3.74 | 3.955 |
| 32 | 6.121 | 6.13 | 6.499 | 6.135 | 6.48 |

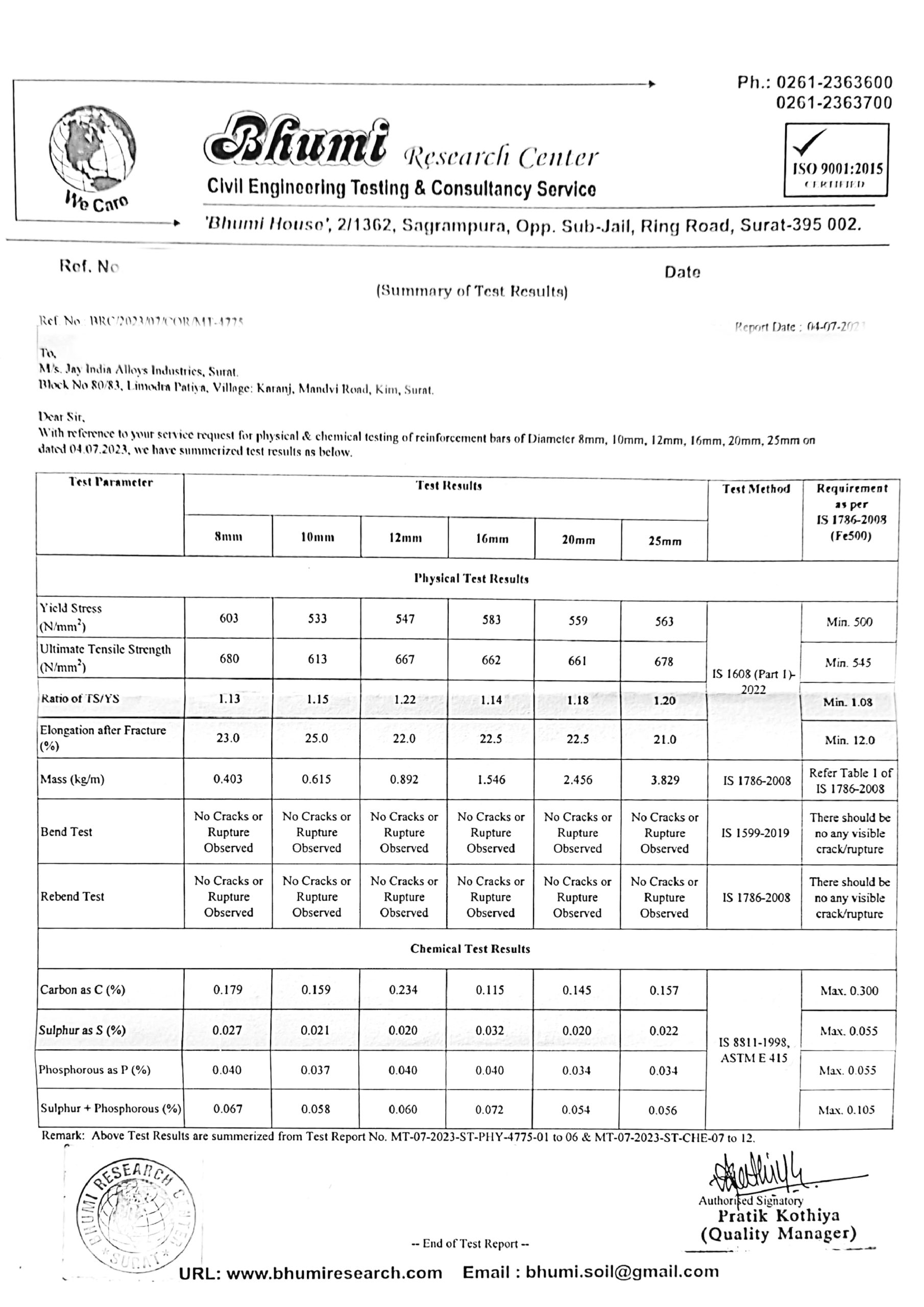

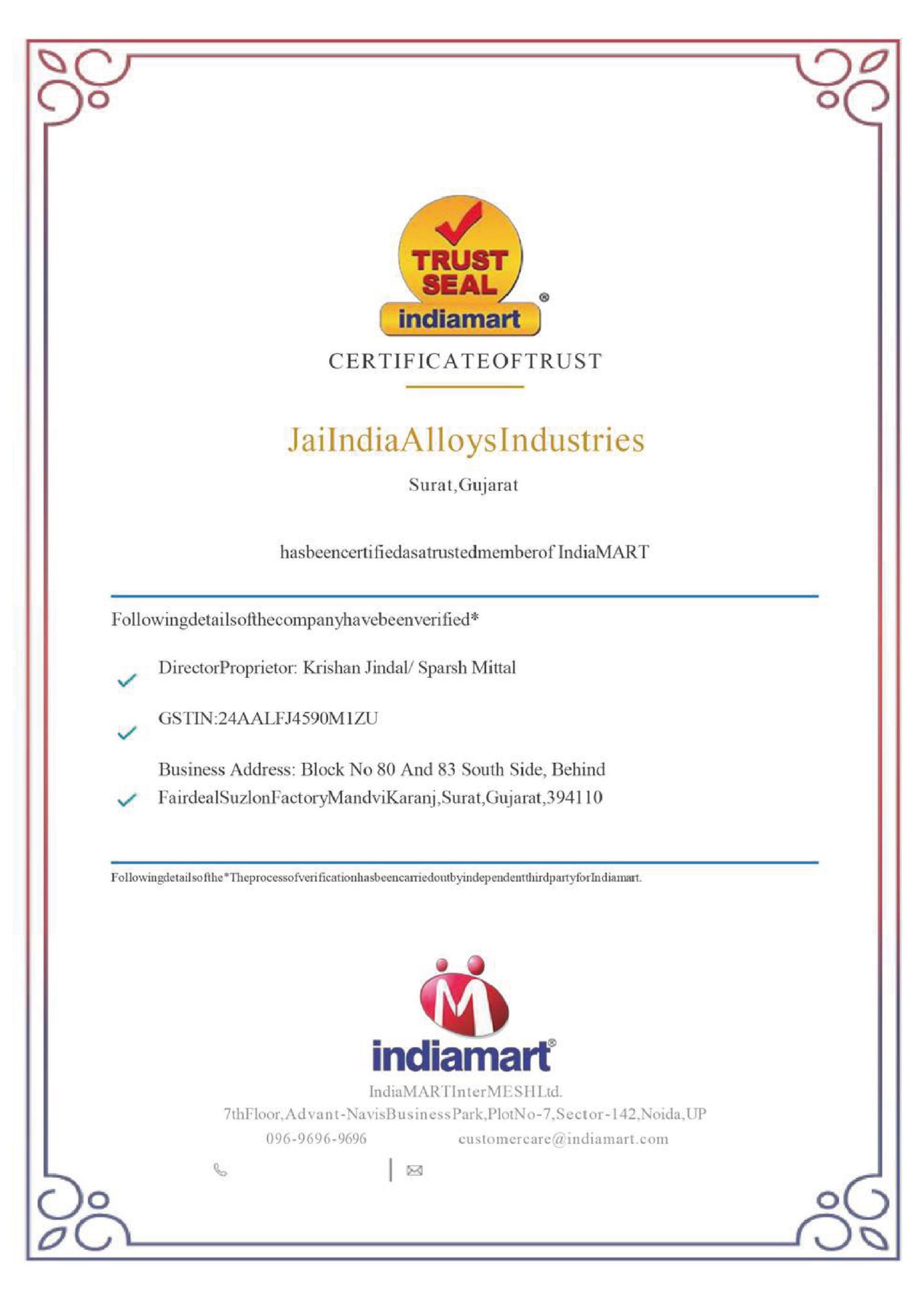

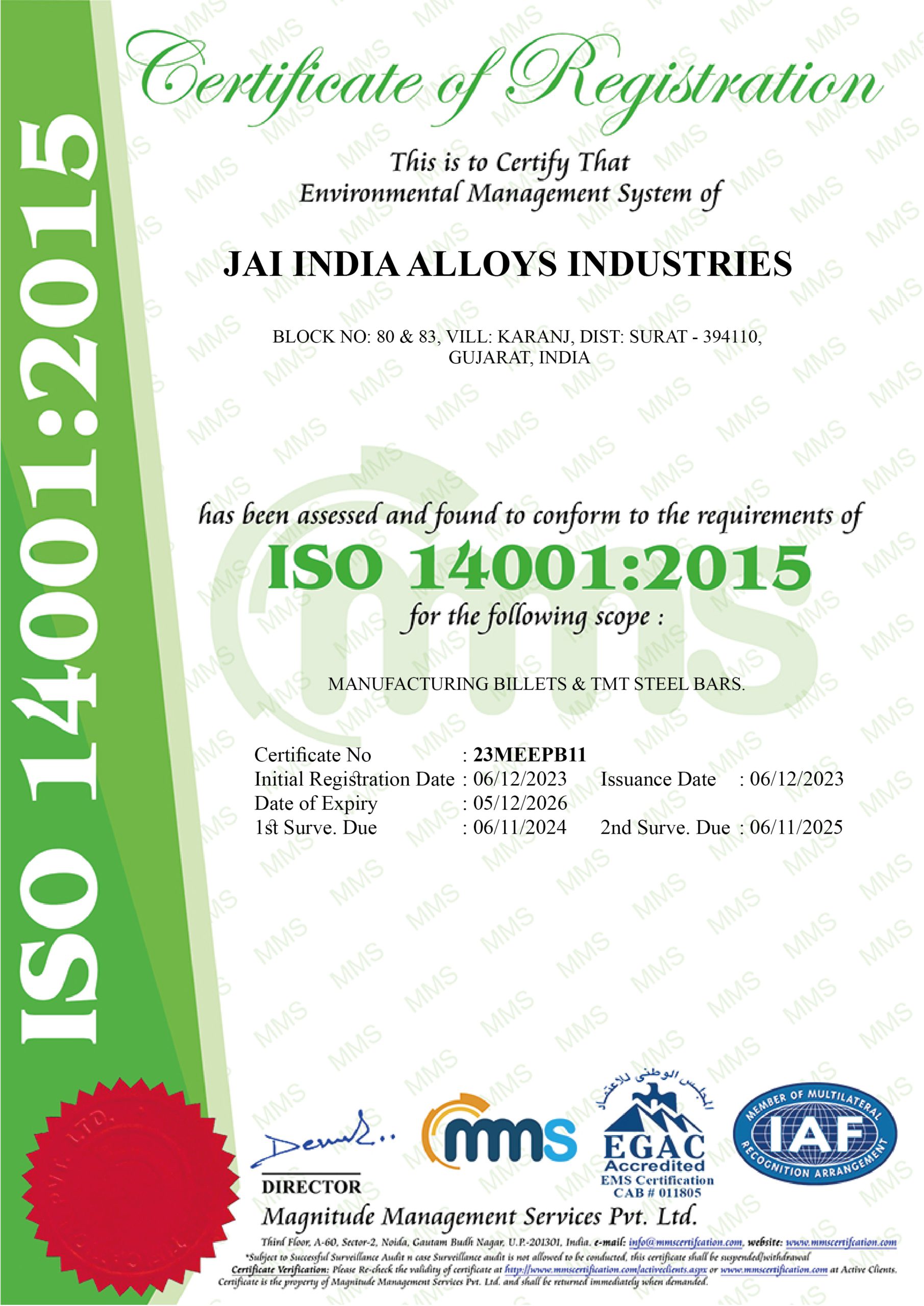

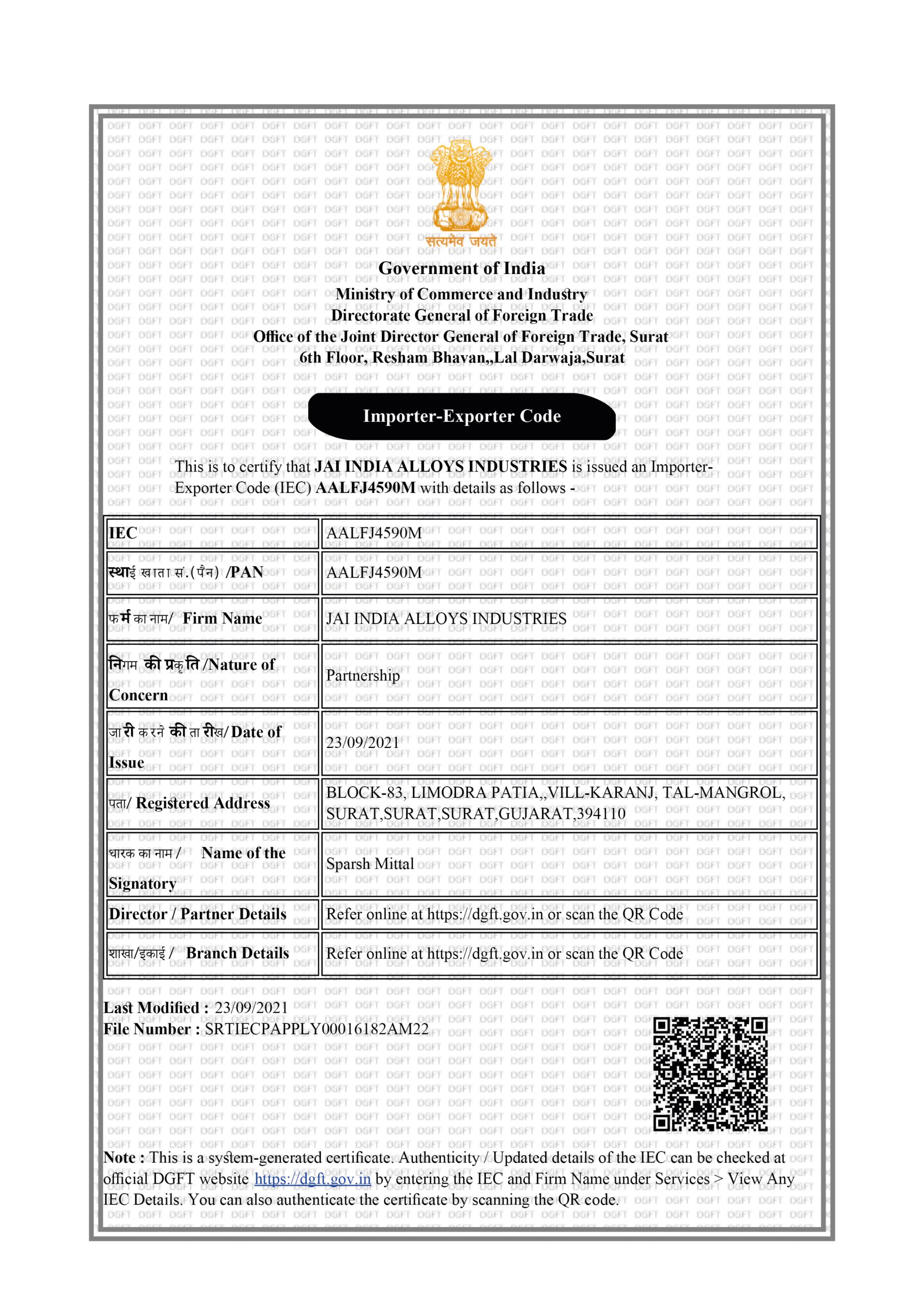

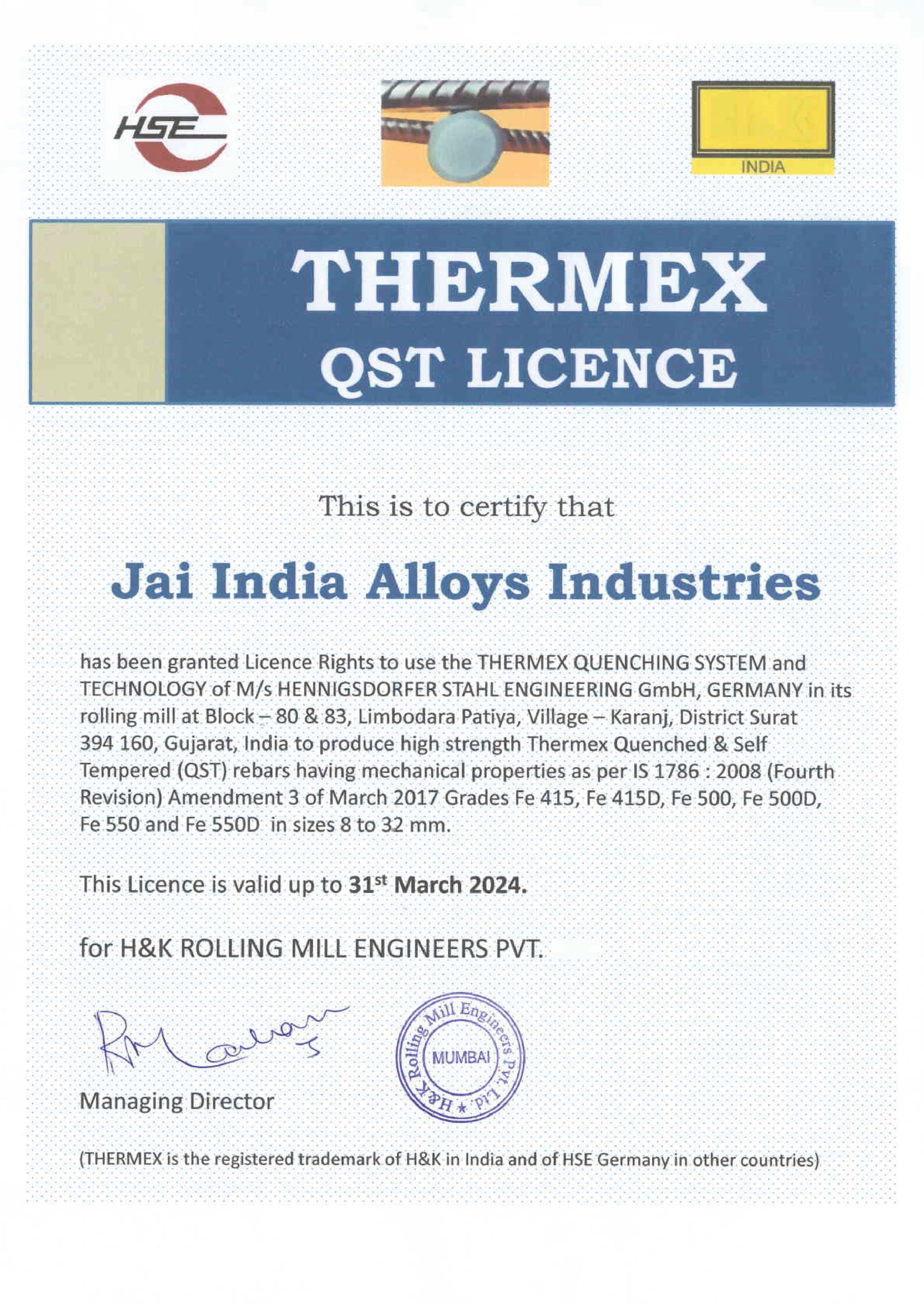

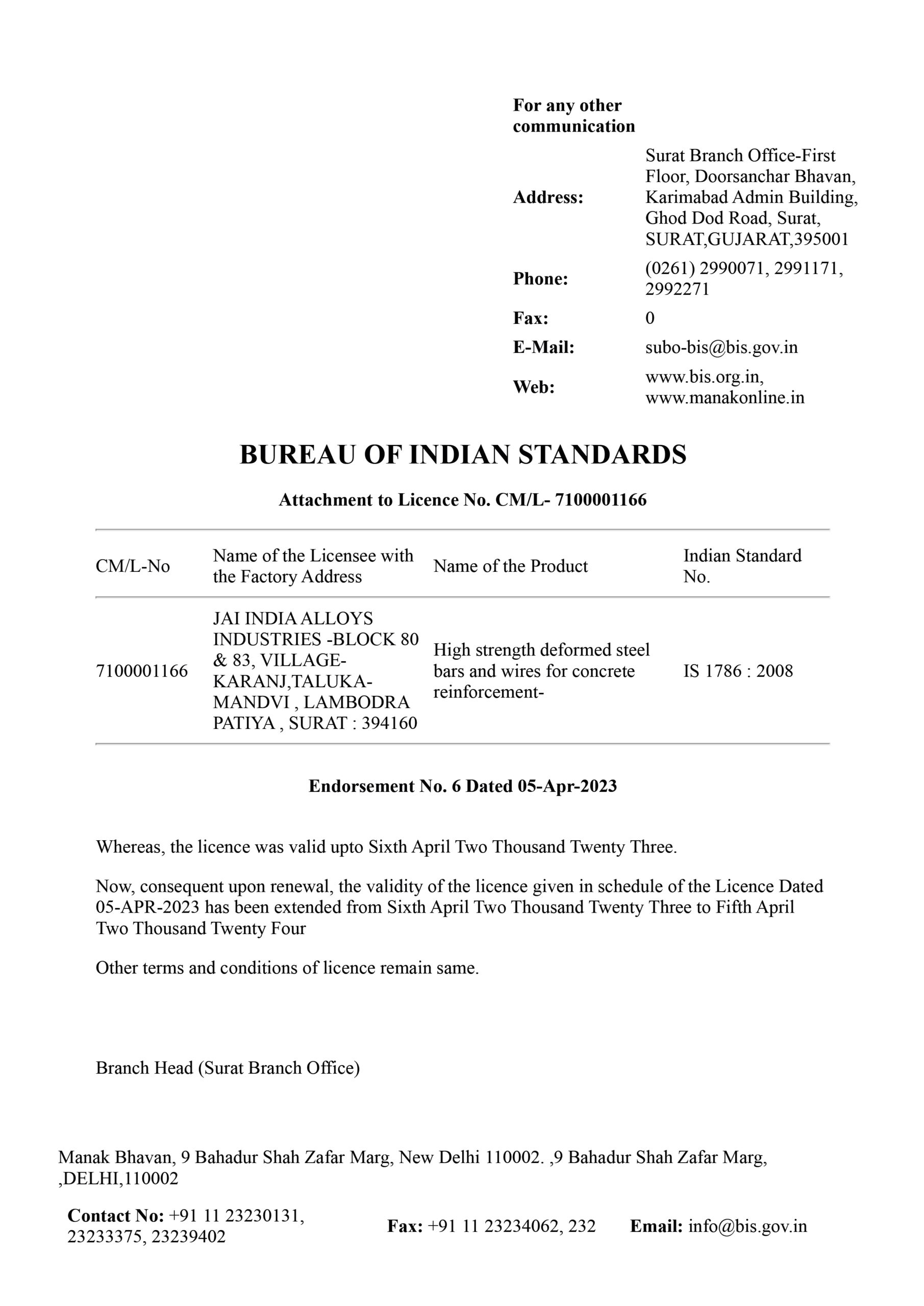

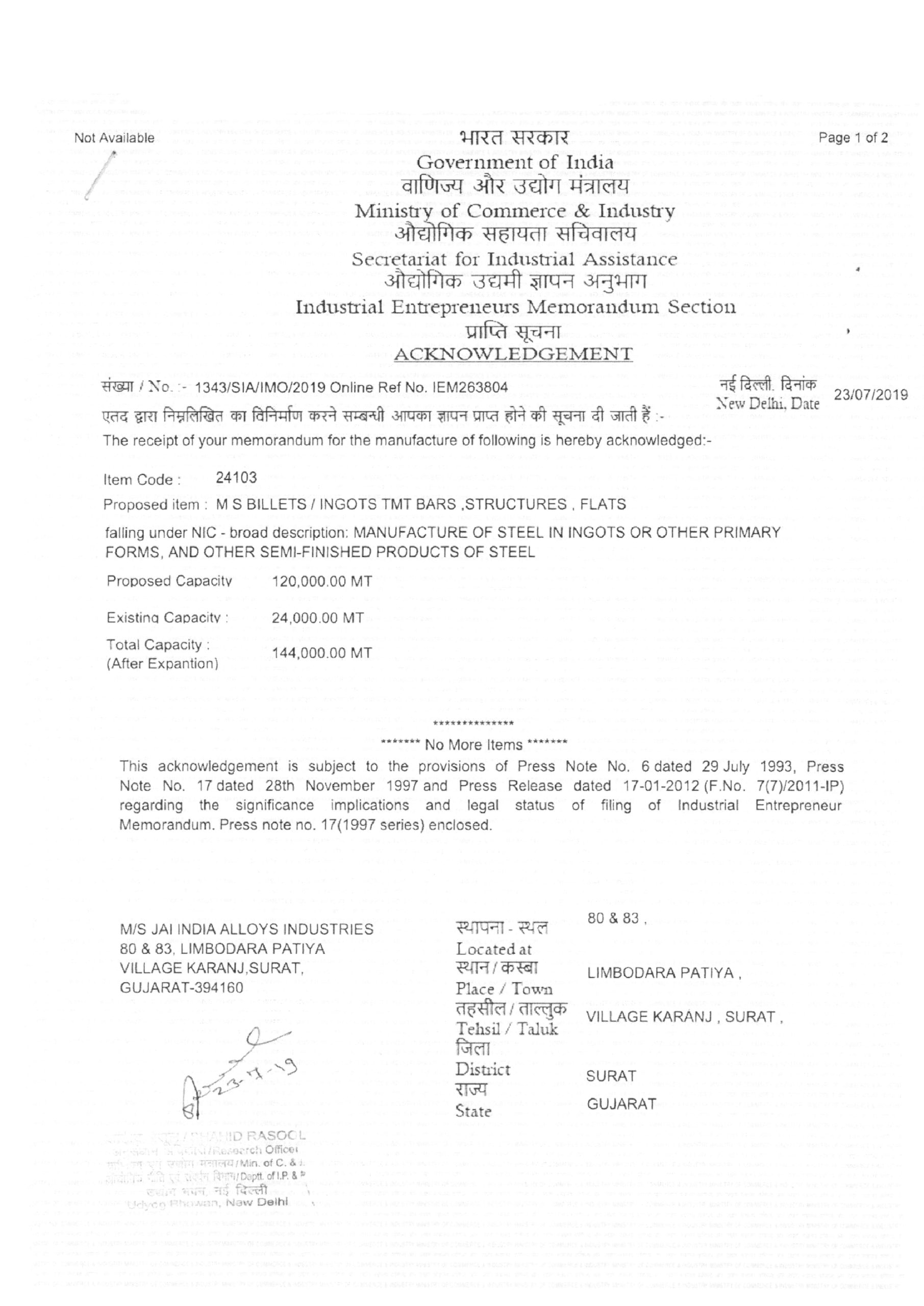

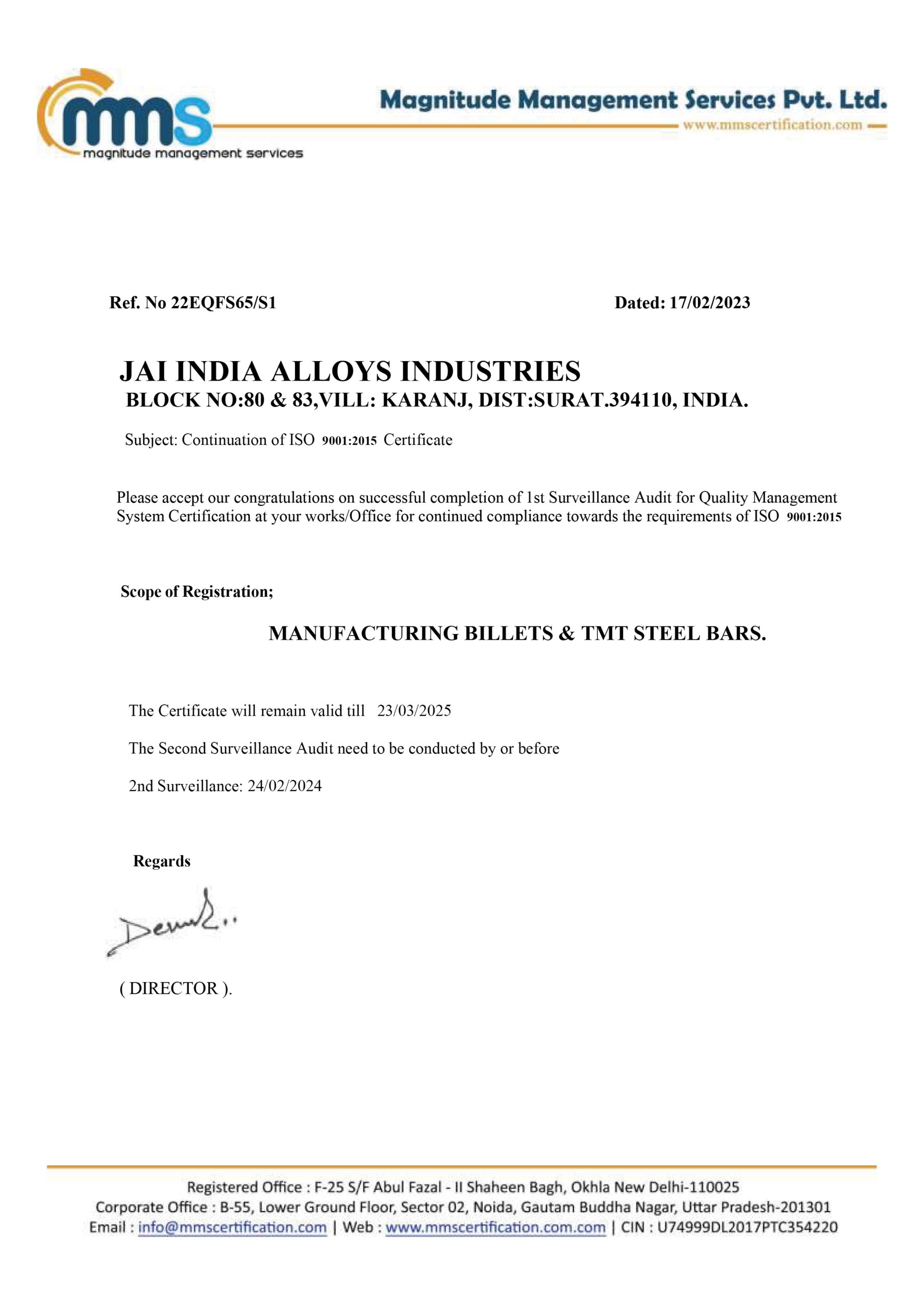

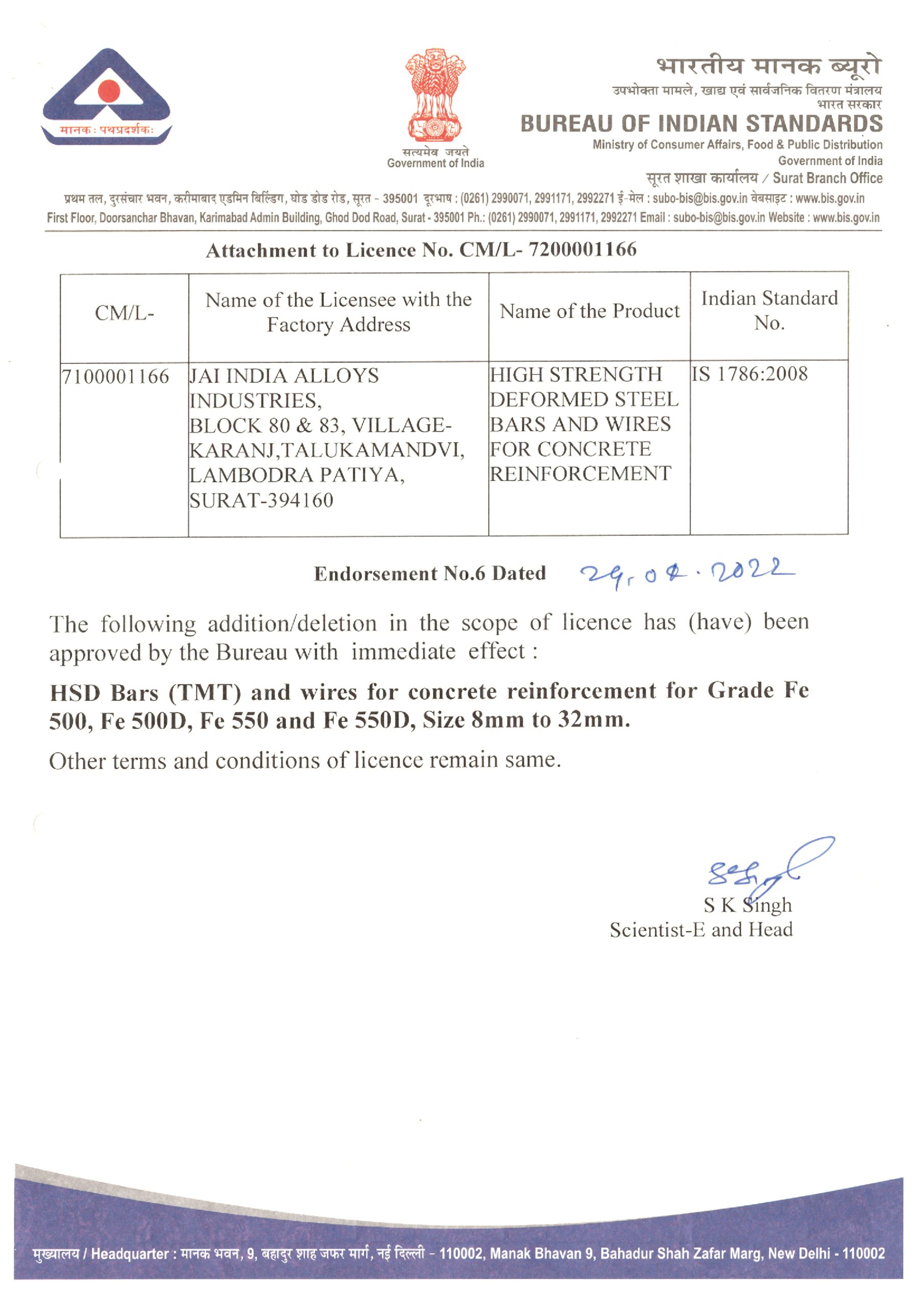

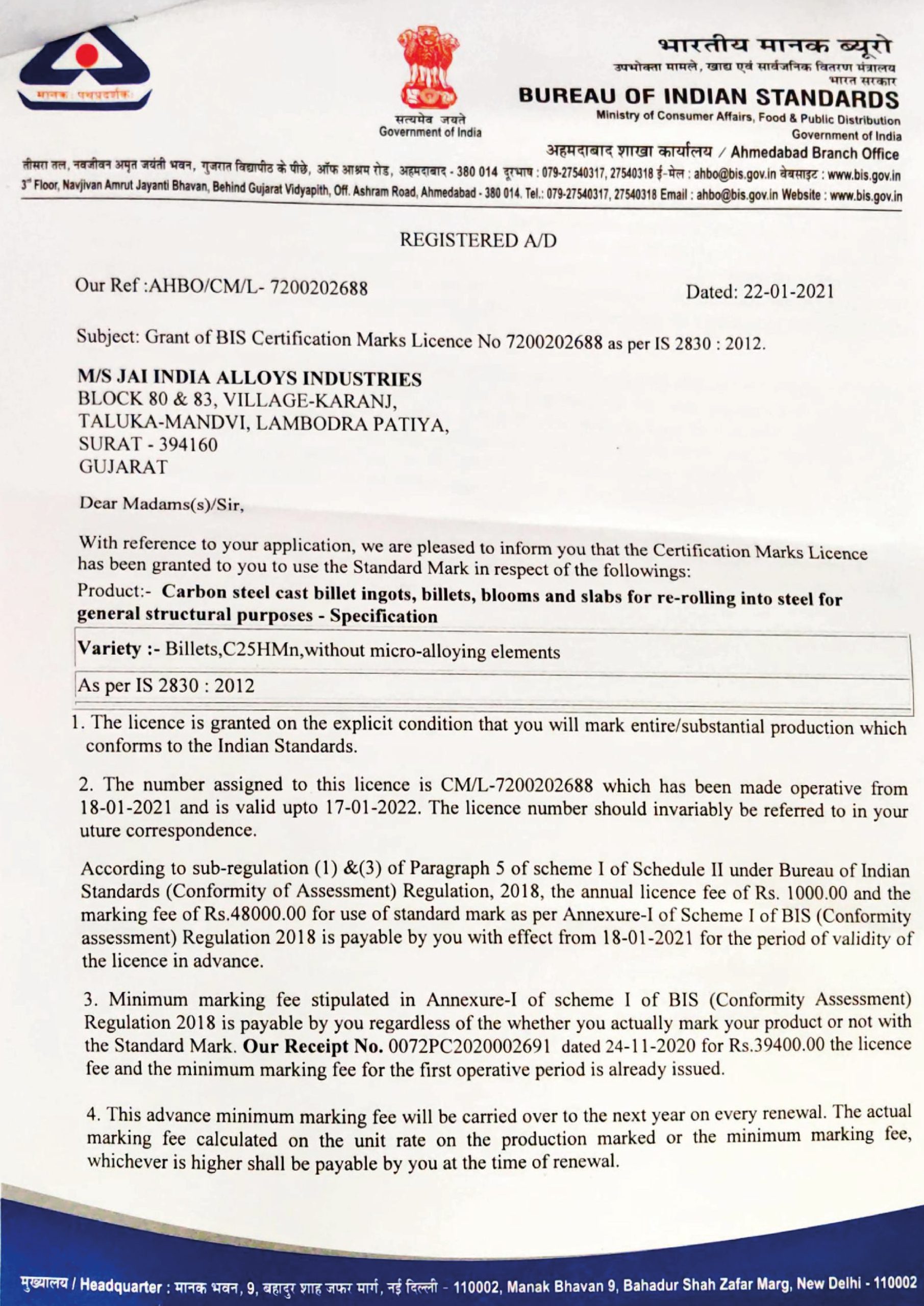

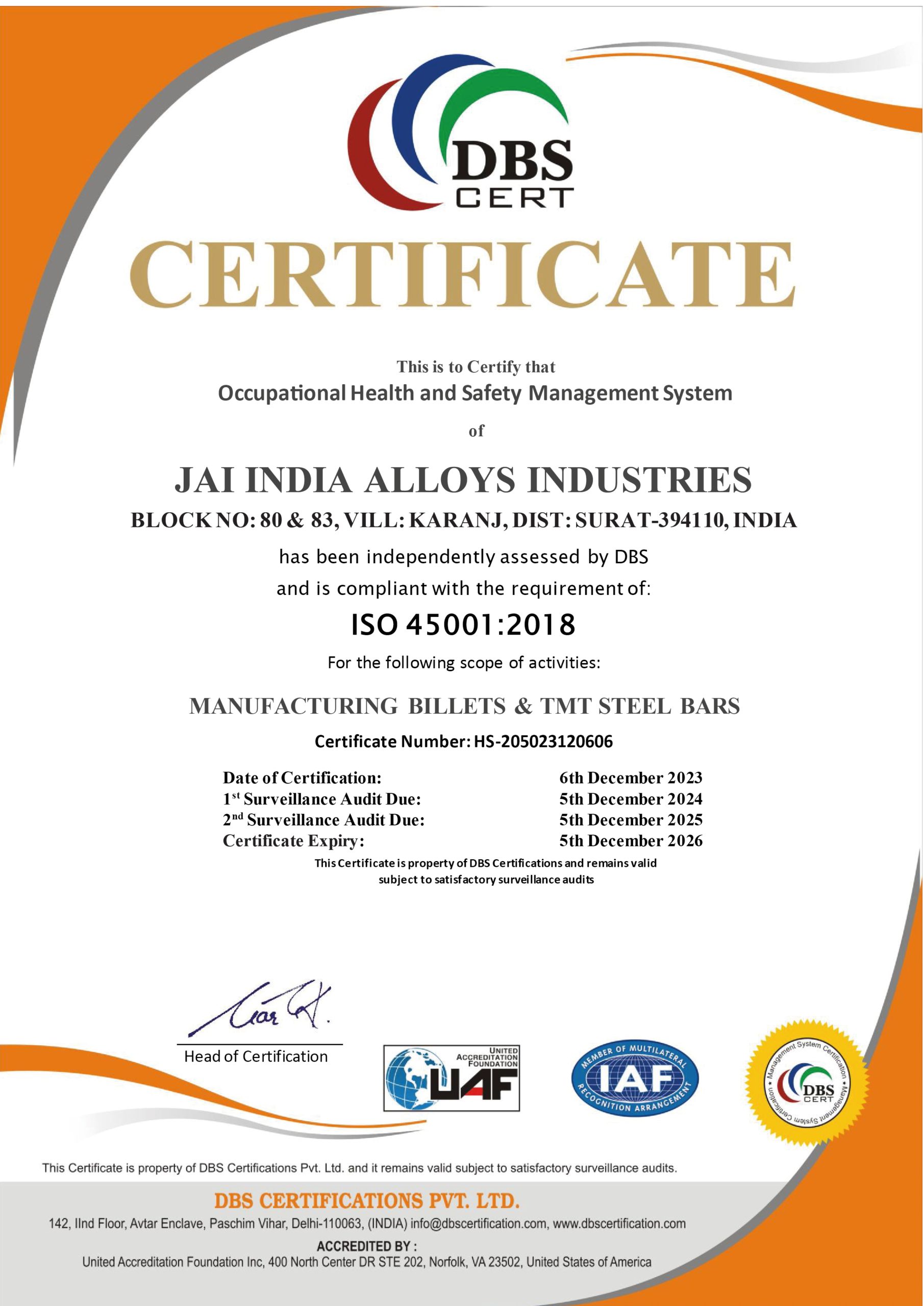

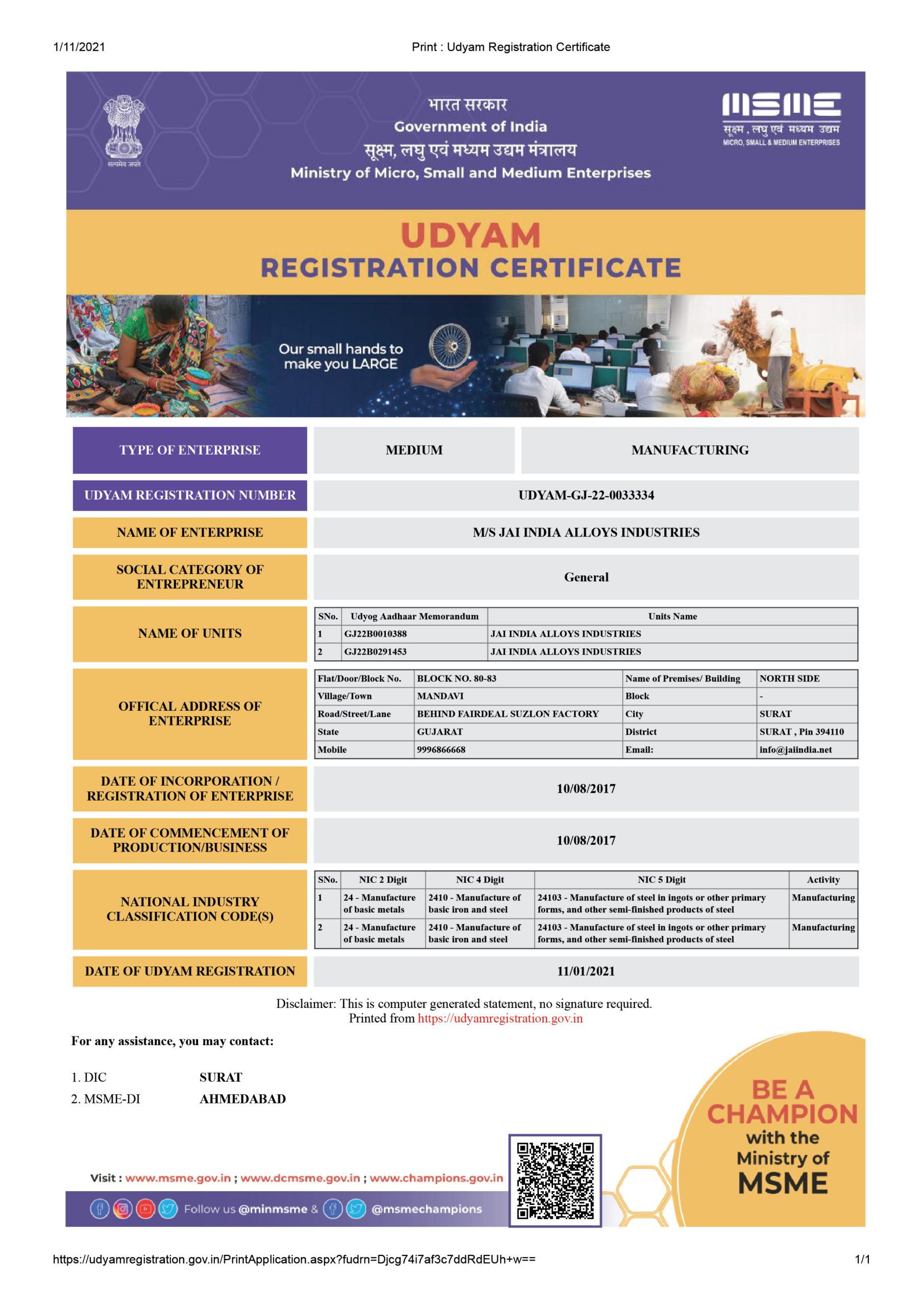

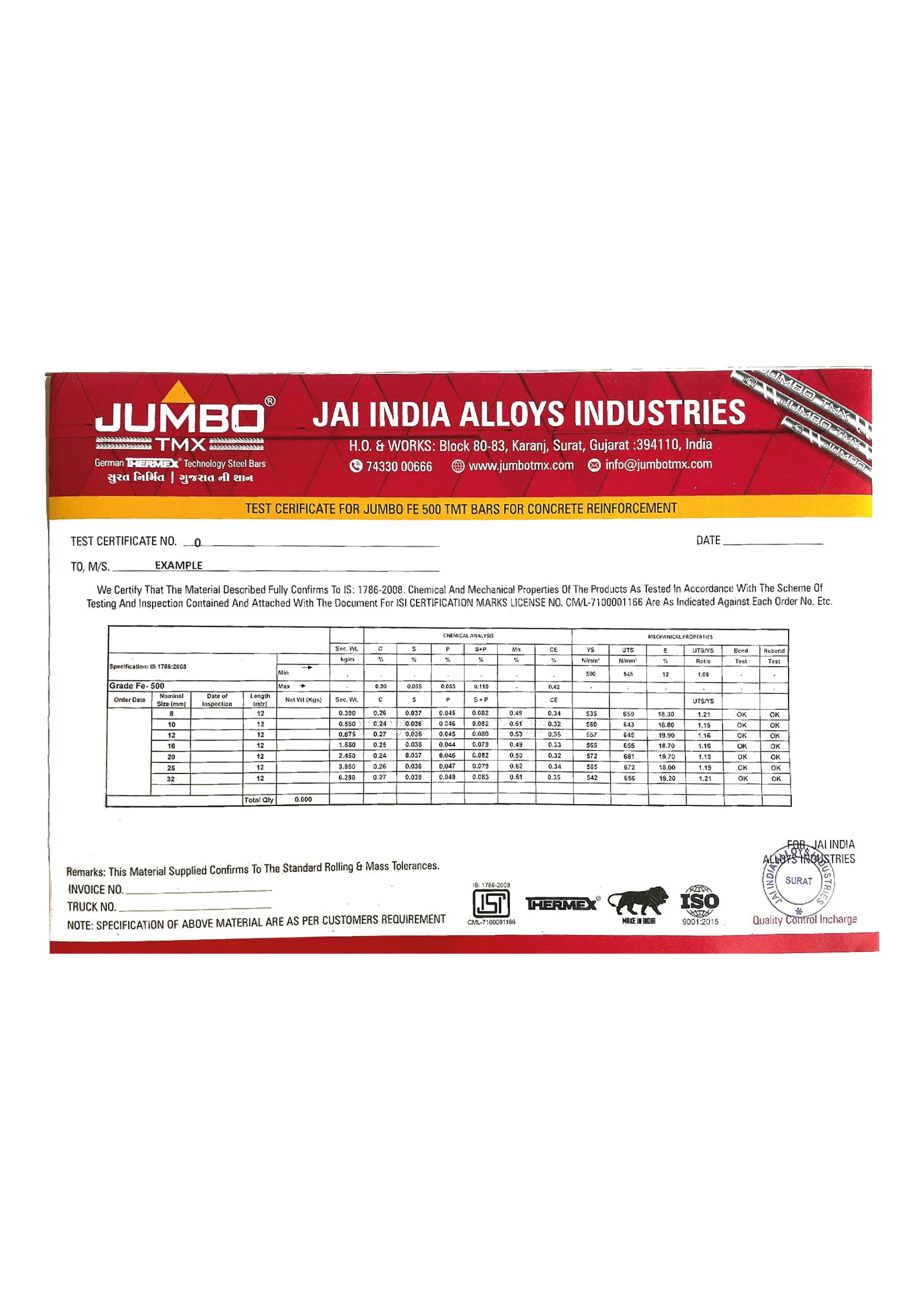

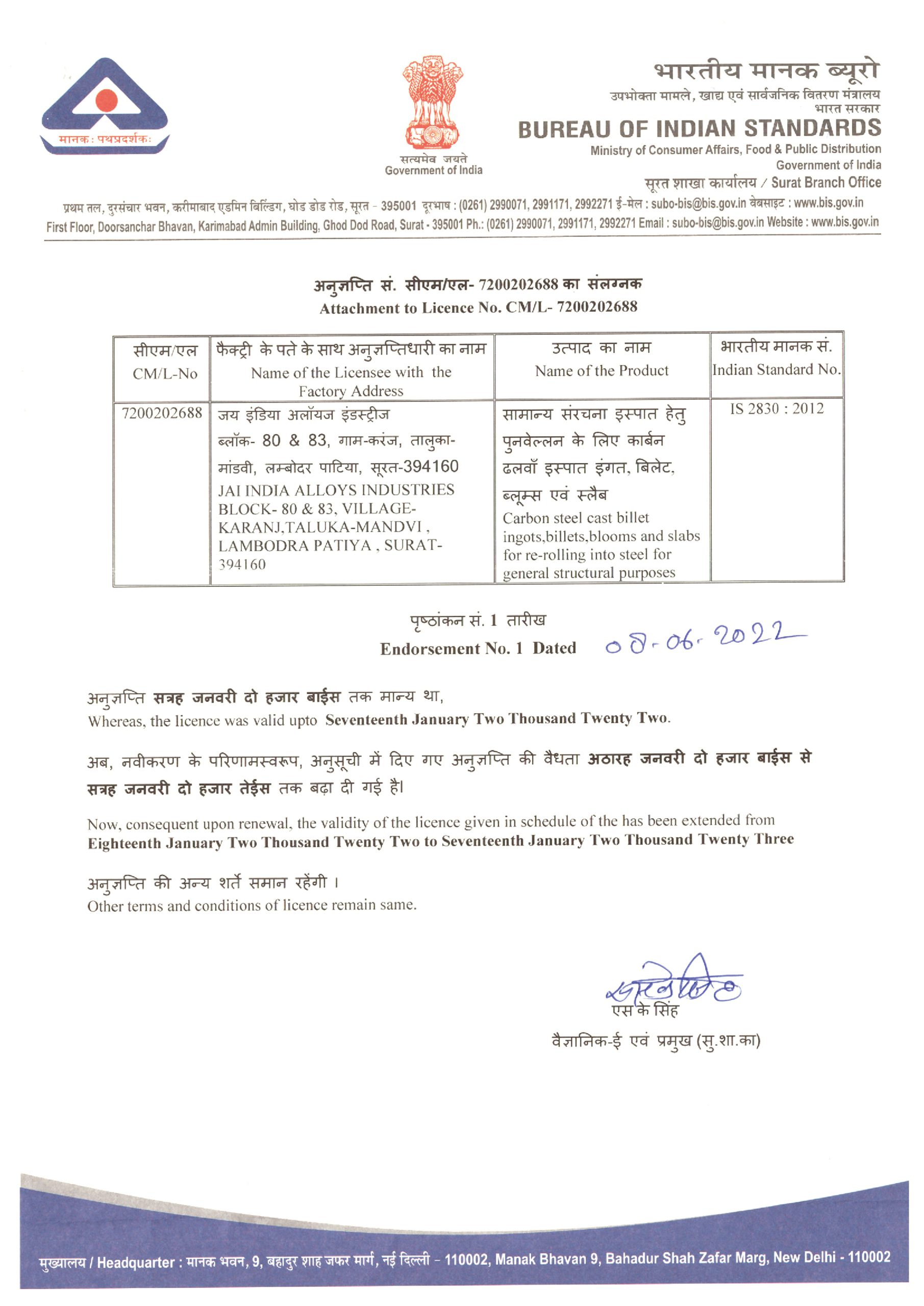

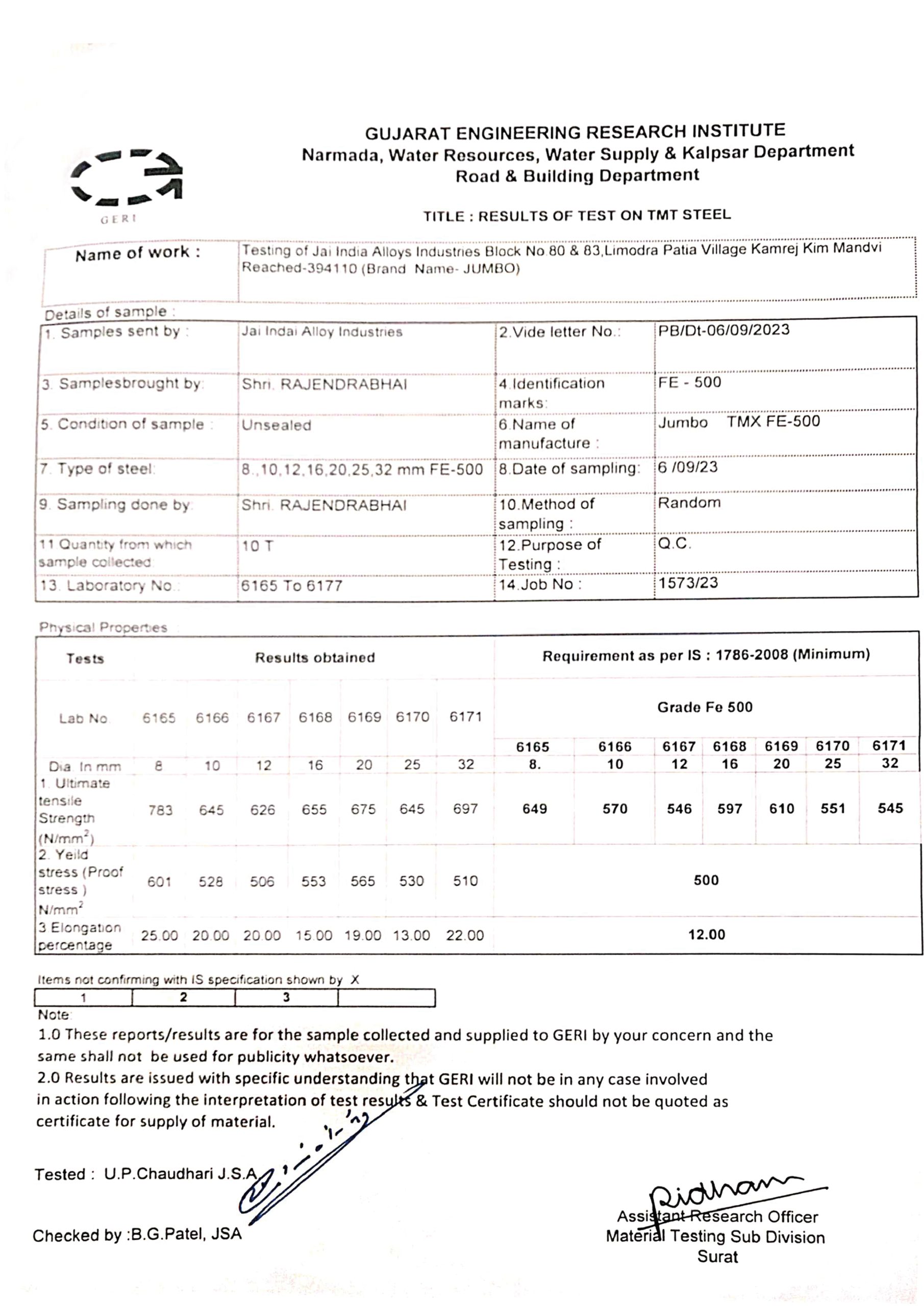

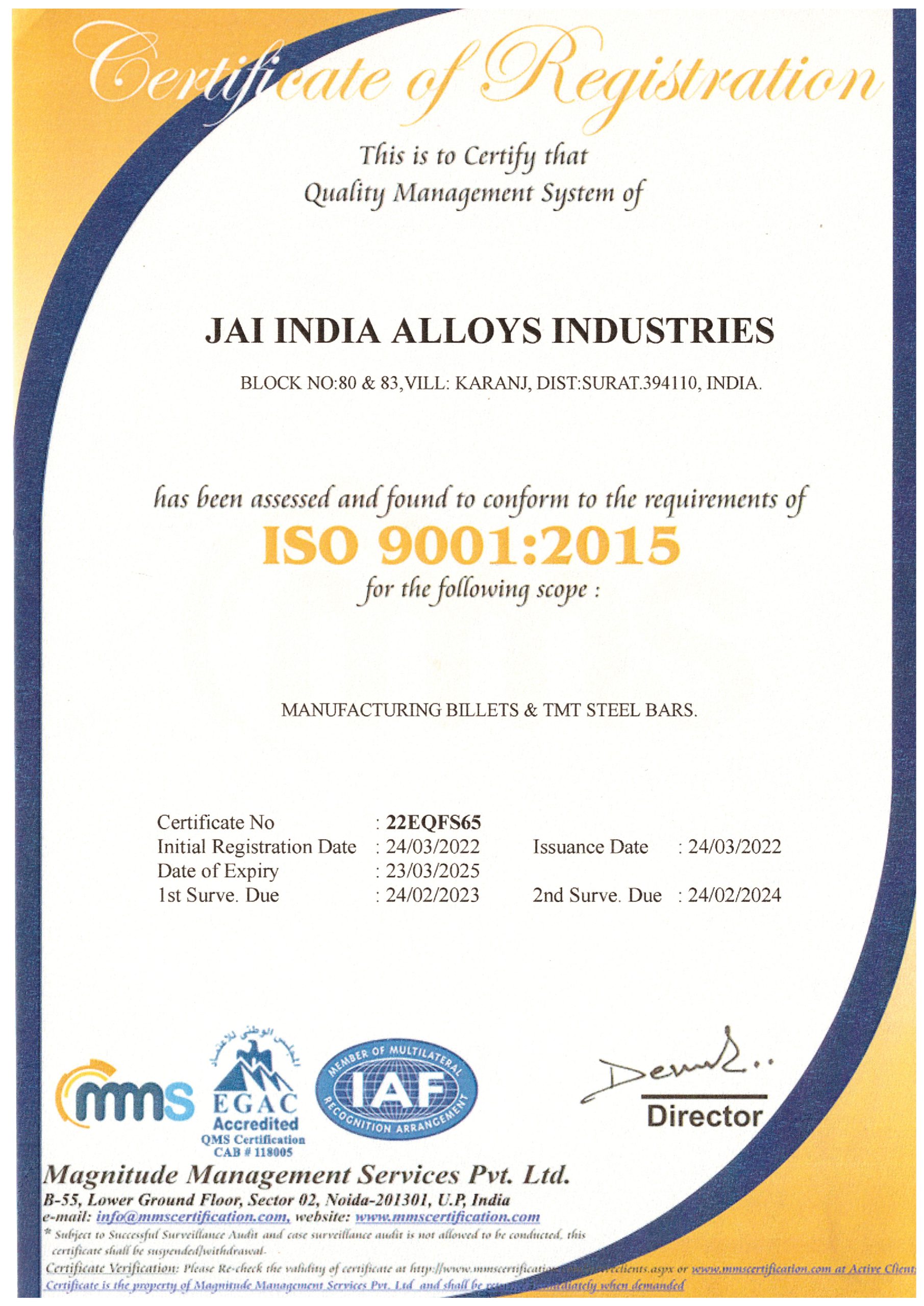

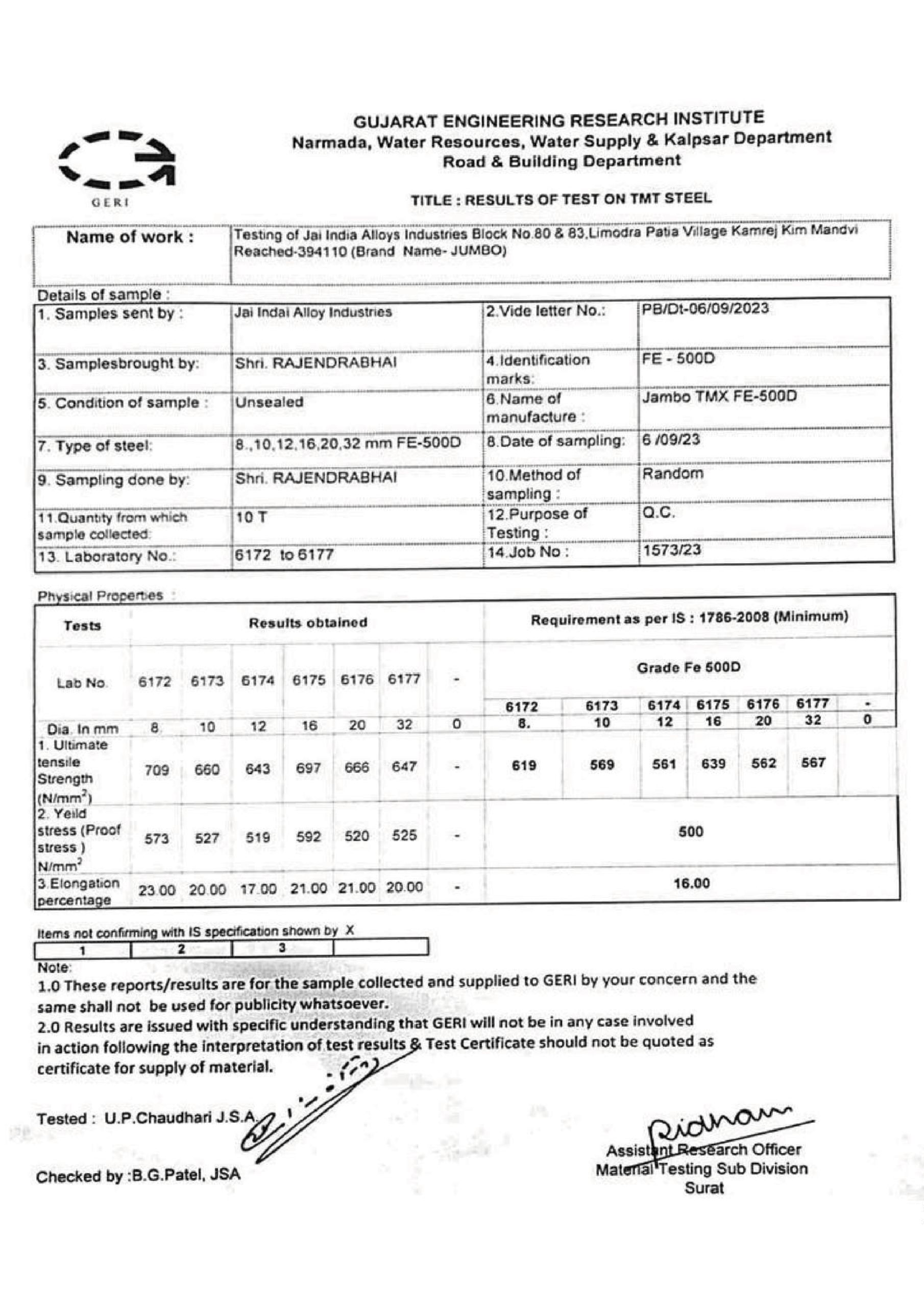

Certificates
