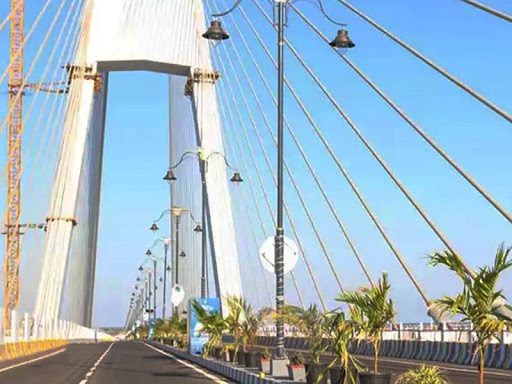

Sudarshan Setu stands as a testament to modern engineering and architectural skill. It’s India’s longest cable-stayed bridge, connecting distant regions and significantly improving the transportation network.
At its core, advanced Thermo Mechanically Treated (TMT) bars provide the strength and durability needed for this massive project.
Engineering Marvels of Sudarshan Setu
1. Structural Design and Materials
Sudarshan Setu’s design uses advanced structural methods with corrosion-resistant TMT bars. These bars guarantee long life and durability under harsh conditions, crucial for the bridge’s integrity over decades.
2. Cable-Stayed Mechanism
The bridge uses a cable-stayed mechanism, perfect for its span. This design requires fewer piers, reducing material use and costs while enhancing the view and functionality. The cable system distributes weight evenly, ensuring stability and strength.
3. Innovations in Construction Techniques
Innovative construction techniques were developed, including special launching methods for segments and advanced monitoring systems for precision in cable tension and load distribution. This sets new standards in bridge engineering.
A Closer Look at Sudarshan Setu
1. A Bridge of Grandeur
- The Sudarshan Setu is an architectural masterpiece, spanning 2.32 kilometers across the Arabian Sea, linking Okha and Beyt Dwarka in Gujarat.
- Inaugurated in 2021, it claims the title of India’s longest cable-stayed bridge.
- The design features a sleek, cable-supported structure, showcasing human ingenuity over the vast ocean.
2. Efficiency and Durable Design
- Four lanes: Each 3.5 meters wide for smooth two-way traffic.
- Pedestrian walkways: 2.5 meters wide on each side, enhancing safety and offering scenic views.
- Overall width: 27.2 meters, balancing traffic flow and pedestrian needs.
3. The Strength of Suspension
- Sudarshan Setu features a cable-stayed design, using multiple pylons that support the deck with a web of cables in a fan-like pattern.
- This design efficiently distributes weight, ideal for the bridge’s long central span of 500 meters.
- Cable-stayed architecture provides superior stability and aesthetic appeal, especially suitable for expansive spans.
Challenges in Construction
Building Sudarshan Setu wasn’t a walk in the park. The project faced numerous hurdles.
1. Geographical and Climatic Issues:
Constructing over a vast water body had its headaches. High winds and strong currents made stability a tricky business. Marine settings brought their own problems, like corrosion from salty winds and seawater.
2. Logistical Hurdles:
Moving and assembling large structural parts in a remote location required meticulous planning. It was like a giant puzzle that needed careful coordination. Innovative engineering solutions helped overcome these obstacles. Corrosion-resistant TMT bars were vital, standing firm against harsh marine conditions. They ensured the bridge’s longevity and cut down on future maintenance needs.This wasn’t just about building a bridge; it was about building a lasting legacy.
Role of TMT Bars in Sudarshan Setu
TMT bars played a pivotal role in building Sudarshan Setu. They offer huge strength and longevity for this massive project. These bars are known for their high tensile strength, supporting the bridge’s hefty loads. Their flexibility was key for absorbing and spreading out stresses evenly.
Key Advantages of TMT Bars
1. Corrosion Resistance
TMT bars shrug off environmental damage. This resilience is essential for the bridge’s longevity, facing constant moisture and corrosive elements. It cuts down the need for frequent maintenance and repairs.
2. Durability
Built to endure severe weather, earthquakes, and long-term wear, TMT bars maintain the bridge’s structural integrity and safety for decades. They are tough as nails.
3. Cost-Effectiveness
The enduring nature and low maintenance needs of TMT bars make them a budget-friendly choice for major infrastructure. They offer substantial savings over the project’s lifespan.
TMT bars aren’t just strong; they’re smart. They make building long-lasting structures easier and more efficient.
Conclusion
Sudarshan Setu’s completion is more than a milestone; it’s a game-changer for the region. Economically, it’s a catalyst for growth, improving market access and boosting local economies. Socially, it’s a bridge—literally and figuratively—connecting communities, easing commutes, and fostering cultural exchange.
Environmentally, it’s a benchmark. The use of sustainable materials, like corrosion-resistant TMT bars, reduces the need for constant repairs and replacements. It’s a forward-thinking construction at its finest.
Jumbo’s TMT bars aren’t just another material—they’re the future. Explore their capabilities and see how they can enhance safety, durability, and efficiency in your projects, just like in Sudarshan Setu. Don’t just build; build better.
