If you’re starting a new construction project, one of the most critical decisions you’ll make is choosing the grade of TMT bars that provide the structural reinforcement.
With grades ranging from Fe 415 to Fe 600 that cater to different strengths and seismic stability needs, picking the optimal TMT bar type is key to building a sound and safe structure.
In this blog, we’ll decode the commonly used grades of Thermo Mechanically Treated (TMT) bars so you can make an informed decision based on your specific project requirements. Let’s get started!
Grade of TMT Bars
The grade of TMT bars depends on three key parameters:
- Yield Strength: The stress a TMT bar can withstand without undergoing permanent deformation.
- Tensile Strength: The maximum stress a TMT bar can bear before breaking.
- Elongation: How much a TMT bar can be stretched before it snaps. Higher elongation allows for more flexibility.
Based on these properties, TMT bars are branded with grades like Fe 415, Fe 500, Fe500D, Fe 550, Fe550D, and Fe 600. The ‘Fe’ refers to the iron in steel. The numbers denote the minimum yield strength of the bars in kg per sq mm. But what does each grade mean for your construction needs? Let’s find out:
1. Fe 415 TMT Bars
With a yield strength of 415 MPa, Fe 415-grade bars possess moderate tensile strength combined with good ductility.
They find application in:
- Flooring
- Non-load-bearing sections
Fe415 bars may prove inadequate where higher load-bearing capacity is required such as in tall buildings or regions with seismic activity risks.
In terms of price, they are the cheapest bars on the market. They are 3 rs/kg less expensive than Fe500; however, they have limited applications for main reinforcement work in important structural members.
2. Fe 500 TMT Bars
The most popular and widely used grade in construction projects, Fe 500 TMT bars offer the optimum combination of strength and ductility.
With a minimum yield strength of 500 MPa, their key advantages include:
- Suitable for use in high-load-bearing parts of the structure.
- Offer a good balance between strength and flexibility or bendability.
- Commonly used in columns, beams, foundations, slabs, and other load-bearing components of most multi-story buildings as well as bridges.
- Used extensively in earthquake-prone areas as the main reinforcement
- Fe500 meets nearly 75–80% of local needs.
In terms of cost, Fe500 establishes the benchmark for TMT bars. So whether you’re constructing a residential apartment, commercial complex, or office tower, rest assured that Fe 500 grade bars won’t let you down!
3. Fe 500D TMT Bars
Fe 500D TMT bars are a special variant of the popular Fe 500 grade reinforcement steel. The ‘D’ denotes that these bars have improved ductility over normal 500-grade bars.
Key features include:
- Meet strict ductility requirements imposed by structural design norms
- Also used in concrete road applications requiring good tensile strength
- More elongation than the Fe500, Fe550, and Fe550D TMT bars (16%).
Keep in mind that the mechanical properties of Fe500 and Fe500D are the same, but when it comes to cost, Fe500D costs 2–2.5 rs/kg more than Fe500.
For structures in high seismic zones or where flexibility under movement is vital, Fe 500D TMT bars deliver that optimum combination of strength and ductility.
4. Fe 550 TMT Bars
Fe 550 grade TMT steel bars are a variant ideal for high-rise buildings and other structures needing to bear heavy loads.
They offer the following features:
- Higher load-bearing capacity with a minimum 550 MPa yield strength.
- Ideal for high rises, large-span bridges, industrial facilities, and critical infrastructure.
- Only marginally costlier than Fe 500 grade TMT
So for important lifeline structures or buildings going 100 meters tall and beyond, opt for the enhanced strength of Fe 550 reinforcement bars, even though they are 1 rs/kg more expensive compared to the standard TMT bar available in the market.

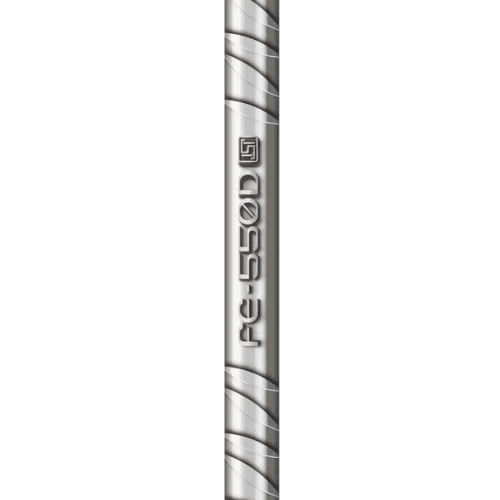

5. Fe 550D TMT Bars
Fe 550D is a variant of TMT steel bars that builds upon the Fe 550 grade to deliver even higher strength and durability. As the ‘D’ denotes, it possesses fewer impurities and better chemicals.
Key advantages include:
- Ideal for heavy structures like dams, towers, and flyovers that bear high loads
- Boasts higher yield and tensile strength than Fe 550 bars
- The reduced quantity of bars required cuts down on the total project cost
- Low carbon, sulfur, and phosphorus content enables stability across temperature variations
- Better corrosion resistance and long-term durability
- High weldability makes steel preparation easier
Fe550D’s superior seismic resistance, coupled with improved lifespan and ease of use, make them a logical choice. Remember, the mechanical properties of Fe550 and Fe550D are the same. Because of their high adaptability, Fe500D bars cost 2-3 rs/kg more than standard TMT bars.
6. Fe 600 TMT Bars
At the top end lies Fe 600 grade TMT steel, with the highest yield strength of 600 MPa for the most demanding applications.
Key features include:
- The highest load-bearing capacity meets the requirements of heavy structures.
- Used in special high-strength concrete construction.
- Suitable for critical infrastructure like nuclear power plants, chemical factories, etc.
- Provides stability under prolonged loads without deformation.
However, Fe 600 bars involve specialized fabrication as they’re difficult to bend or weld. This may entail higher steel preparation costs. They’re also considerably 4-5 rs/kg more expensive than lower-grade options. Hence, Fe 600 grade usage remains limited to specific projects with critical load demands.
Chemical Differences Between TMT Bars:
Mechanical Properties of TMT Bars:
Choosing the Right Grade
Deciding which grade of TMT bar suits your construction requirements depends on several aspects:
- Building Type and Height: Low-rise structures may employ lower Fe 415 grades, but medium to high rises would require Fe 500 at a minimum. For towers above 100m, Fe 550 provides extra structural stability.
- Location and Seismic Risk: In regions prone to frequent earthquakes and significant ground motion, the higher ductility and crack resistance of Fe 550 TMT bars make them an ideal choice.
- Budget Considerations: There isn’t a major cost differential between Fe 415, Fe 500, and Fe 550 TMT steel. However, Fe 600 bars entail a premium price tag and specialized fabrication costs.
- Availability: Check for adequate local availability as well as size range availability for higher grades before deciding on specifications.
- Regulations: Building codes often mandate usage standards for different TMT grades. So be sure to refer to these as well when choosing the reinforcement bar grade.
Additional Considerations
Besides the designated minimum yield strength, also evaluate manufacturer reliability, independent testing certification, corrosion resistance warranty, and overall life cycle costs while purchasing TMT bars
Purchase from reputed TMT providers such as Jumbo TMX. They provide TMT bars with an elongation of 18%, which is significantly higher than the market average. Also, consult with qualified structural engineers to determine the optimal technical specifications.
Conclusion
When starting any construction project, much of the structural quality and safety hinges on picking the appropriate TMT steel grade. By understanding the technical nuances of Fe 415, Fe 500, Fe500D, Fe 550, Fe550D, and Fe 600 specifications, you can make an informed decision based on structure design, seismic risk factors, and investment capability.
For all types of general construction projects, we recommend Fe500 TMT bars. And if extra safety is needed for the project, you can use Jumbo Earth Pro certified TMT bars which perform better than other TMT bars.
